CC Series Jaw Crusher Low Cost

Short Description:

Jaw Crushers are used to reduce the size of many different types of materials in many applications. They are designed to exceed the primary needs of customers in the mineral processing, aggregates and recycling industries. It’s consists of many parts such as an eccentric shaft, bearings, flywheels, swing jaw (pitman), fixed jaw, toggle plate, jaw dies (jaw plates), etc. A jaw crusher uses compressive force for breaking materials.
This mechanical pressure is achieved by the tow jaws dies of the crusher, one of which is stationary and other is movable. These two vertical manganese jaw dies create a V-shape crushing chamber. The electrical motor drives transmission mechanism driven swing hanging around the shaft relative to the fixed jaw do periodic reciprocating motion. The swing jaw undergoes two types of motion: one is a swing motion toward the opposite chamber side called a stationary jaw die due to the action of a toggle plate, and the second is a vertical movement due to the rotation of the eccentric. These combine motions compress and push the material through the crushing chamber at a predetermined size.

Product Detail

Product Tags

Product Description

CC series jaw crusher is new sort of rock crusher with higher efficiency. They are the most productive and cost-efficient jaw crushers for any primary crushing application. They are able to crush all kinds of hard and abrasive rock and mineral ore. In past few years, Anshan Qiangang engineers have been working to improve the wear life of jaw dies. Through material analysis and performance analysis, we have made jaw die have a longer service life. In addition, CC series jaw crusher can be selectively equipped with automatic hydraulic control system, and it is extremely safer and easier to adjust the chamber in actual applications.


1. Low noise and less dust.
2.  the crushing ratio is large, the product particle size is uniform.
3.  Simple structure, reliable operate, low operation cost.
4.  The lubrication system is safe and reliable, easy to replace parts, equipment maintenance is simple.
5.  The deep crushing chamber improve the feeding capacity and output.
6. The energy saving of the equipment is 15%-30% more than that f the old model, the system energy saving is more than double.
7. The large adjustment range for discharge opening. It can meet the requirement of different users.

Product Parameter

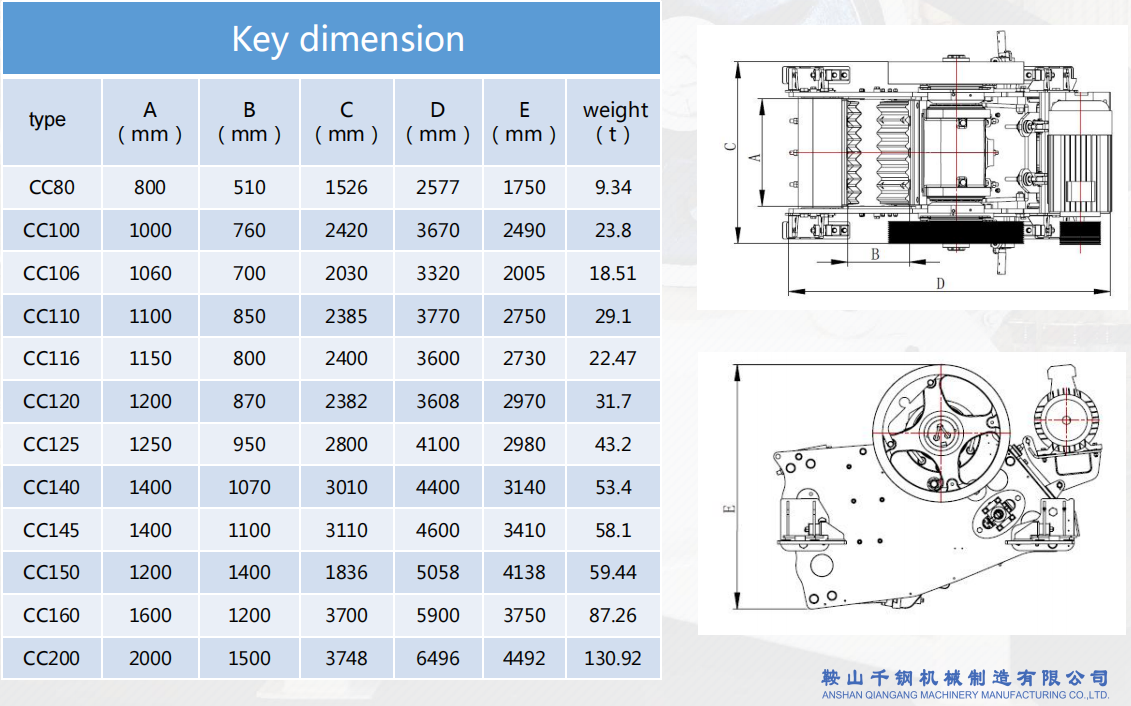

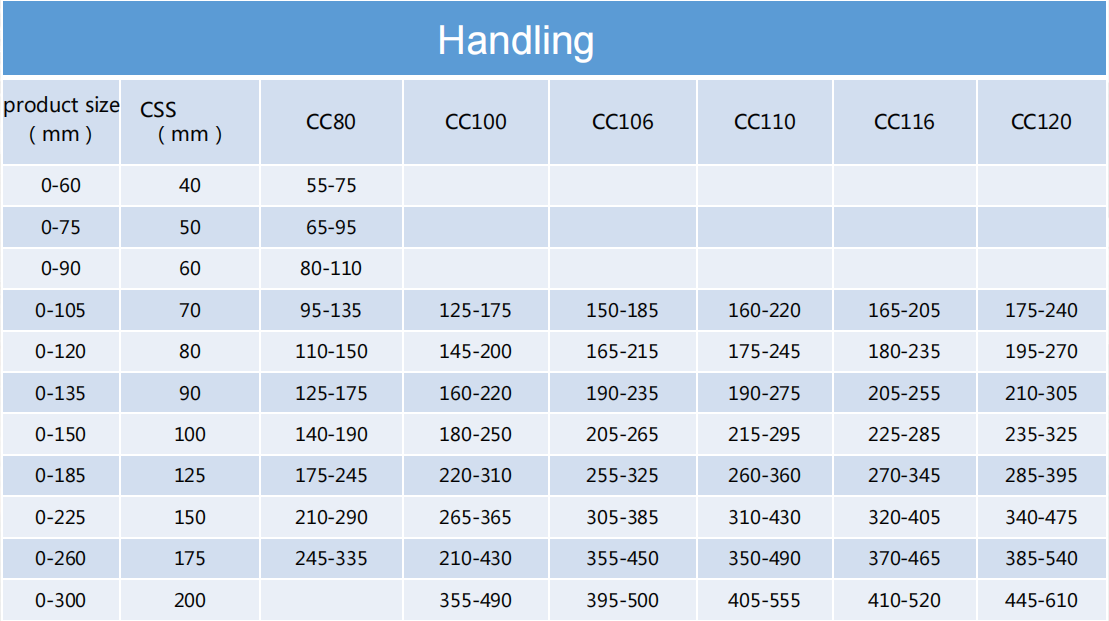

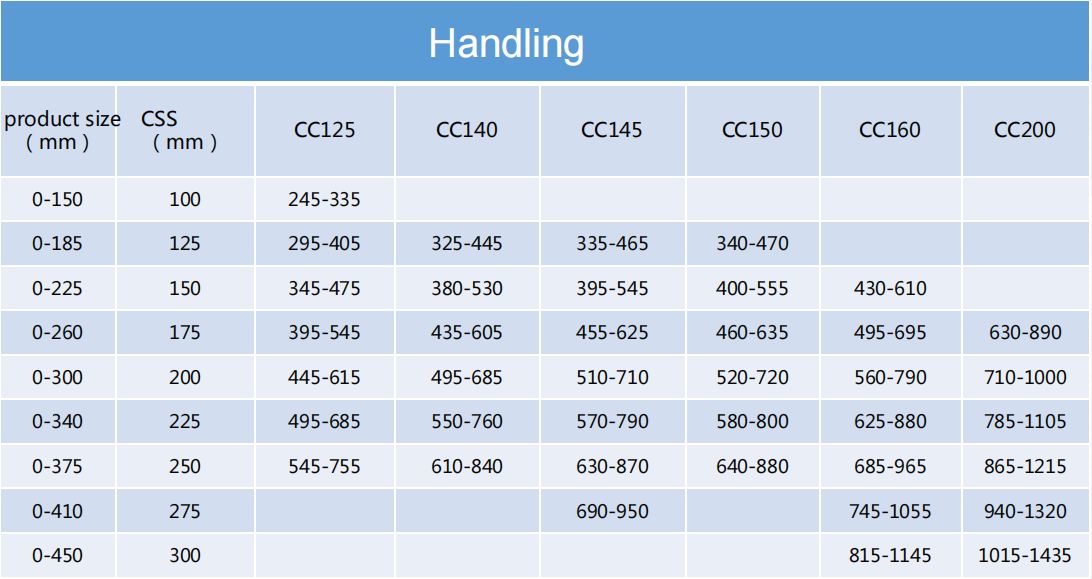

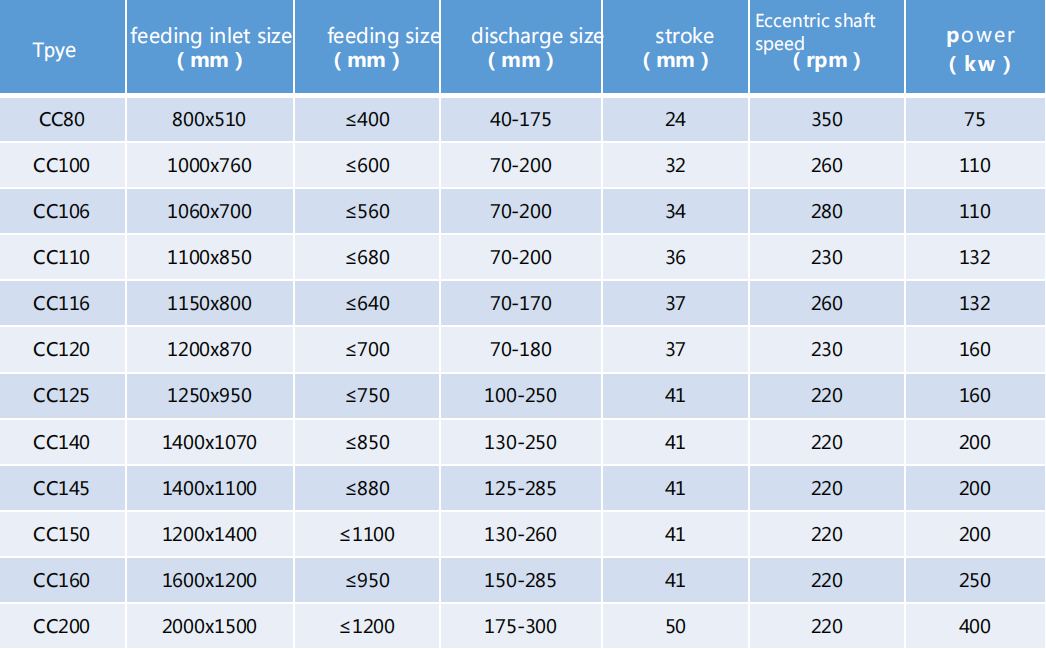

Product Parameter (1)

Product Parameter (2)

Product Parameter (3)

Product Parameter (4)

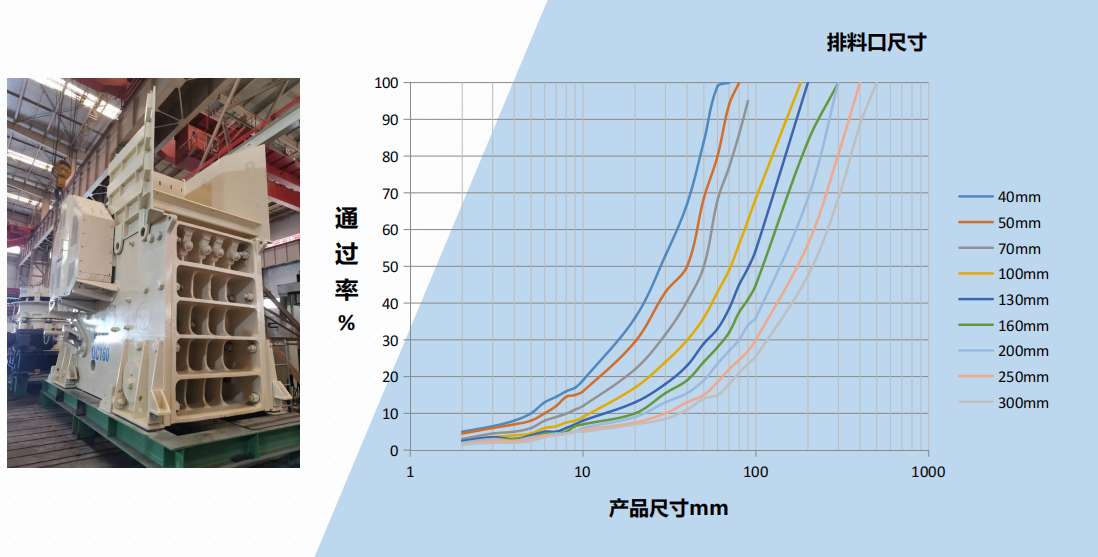

Products grain size curve

Products grain size curve

According to technical changes and updates, the technical parameters of the equipment are adjusted at any time. You can directly contact us to obtain the latest technical parameters.
