Automation Control Single Cylinder Cone Crusher
Product Description
The hydraulic cone crusher adopts the special crushing cavity shape and lamination crushing principle to produce the crushing among particles, so that the proportion of the cube in the finished product is significantly increased, the needle flake stone is reduced, and the grain grade is more uniform.
The upper and lower of main shaft are supported which can be bear greater crushing force and stroke. The suitable lining plate selection makes the equipment have higher crushing efficiency.
PLC control system can separately control the single machine according to the production requirements; It can also be combined with the production line system to realize integrated automatic control.
Application
QC series single cylinder cone crusher has the characteristics of high crushing rate, high product quality and low production cost, it can apply to all kinds of working conditions and crushing materials, it can meet requirements of crushing for medium crushing, fine crushing and super fine crushing.
Feature
Good grain size
The hydraulic cone crusher adopts the special crushing cavity shape and lamination crushing principle to produce the crushing among particles, so that the proportion of the cube in the finished product is significantly increased, the needle flake stone is reduced, and the grain grade is more uniform.
Structure optimization and upgrading to achieve higher efficiency
The upper and lower of main shaft are supported which can be bear greater crushing force and stroke. The suitable lining plate selection makes the equipment have higher crushing efficiency.
Increased degree of Automation
PLC control system can separately control the single machine according to the production requirements；It can also be combined with the production line system to realize integrated automatic control.
Multi-purpose a machine convenient maintenance
Intuitive operation interface, simple operation process. Hydraulic control achieves discharge stepless adjustment under load condition meanwhile to reduce shutdown time.

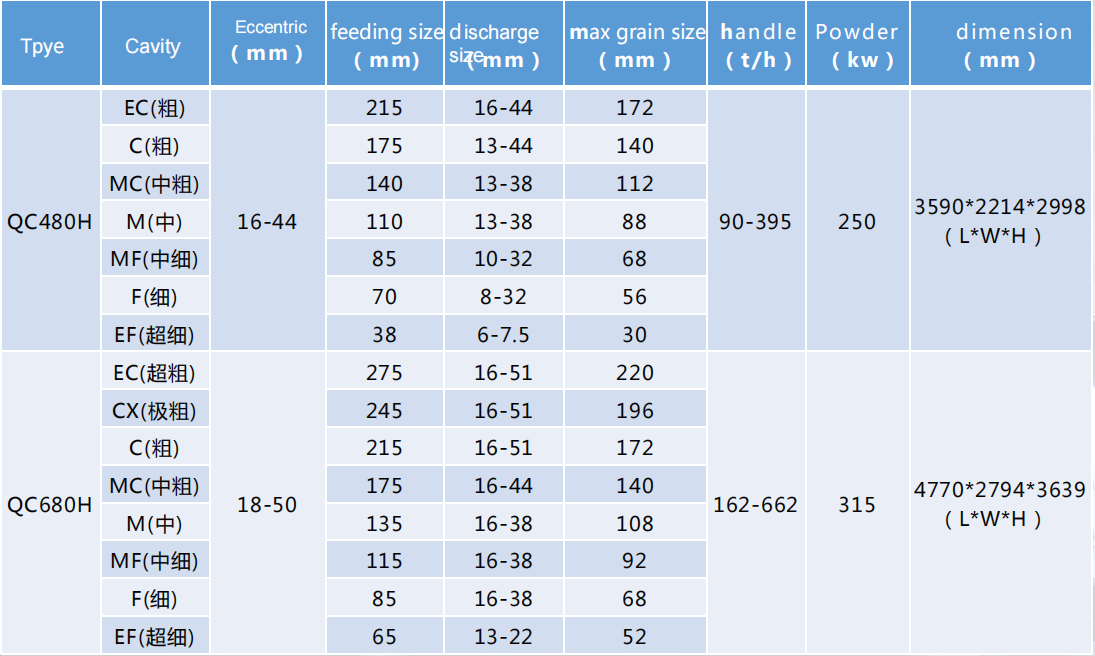

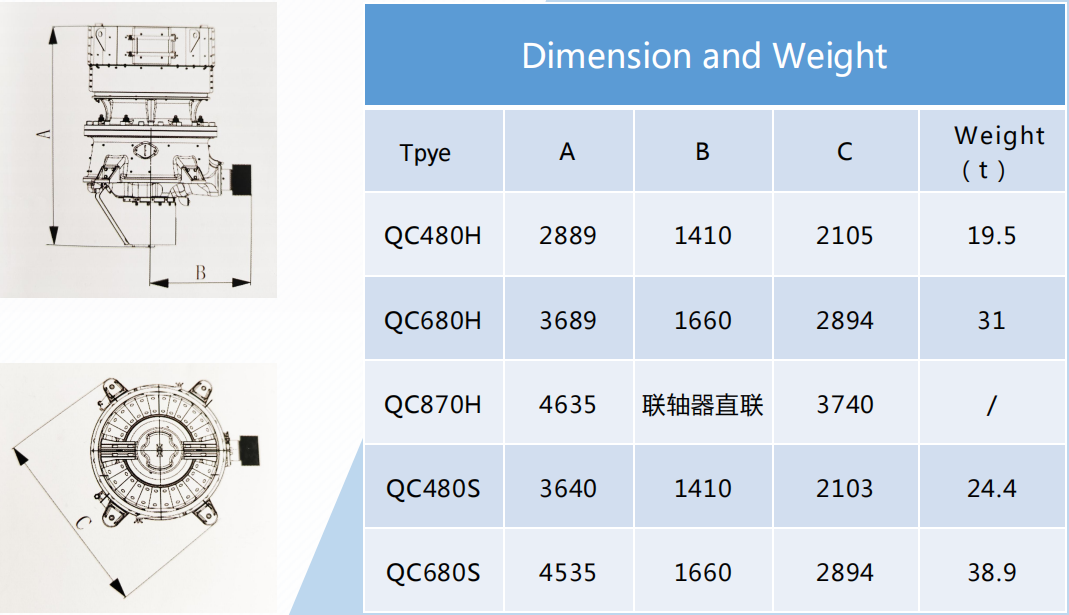

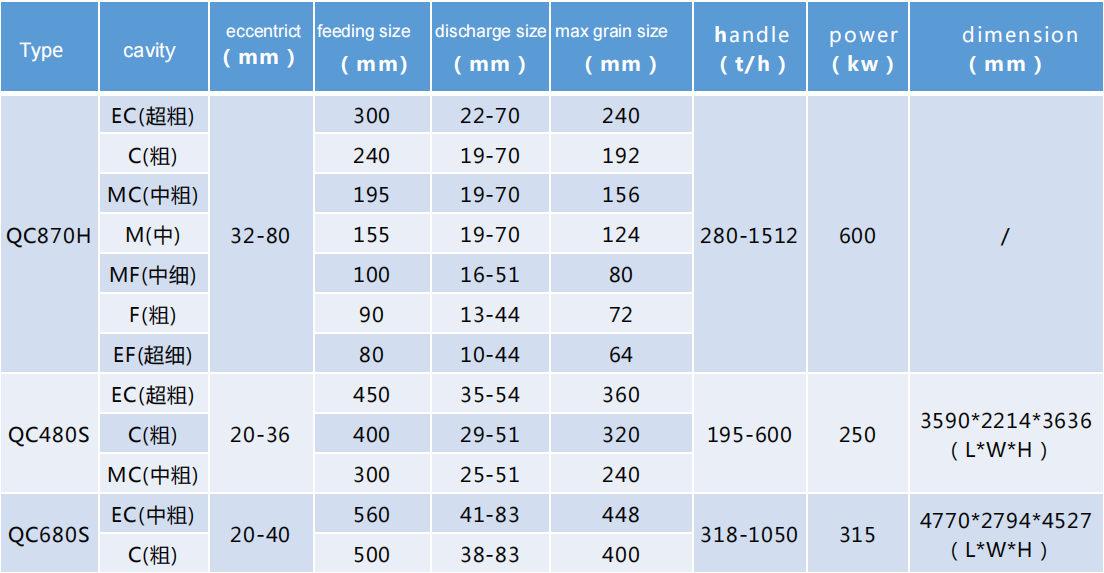

Product Parameter

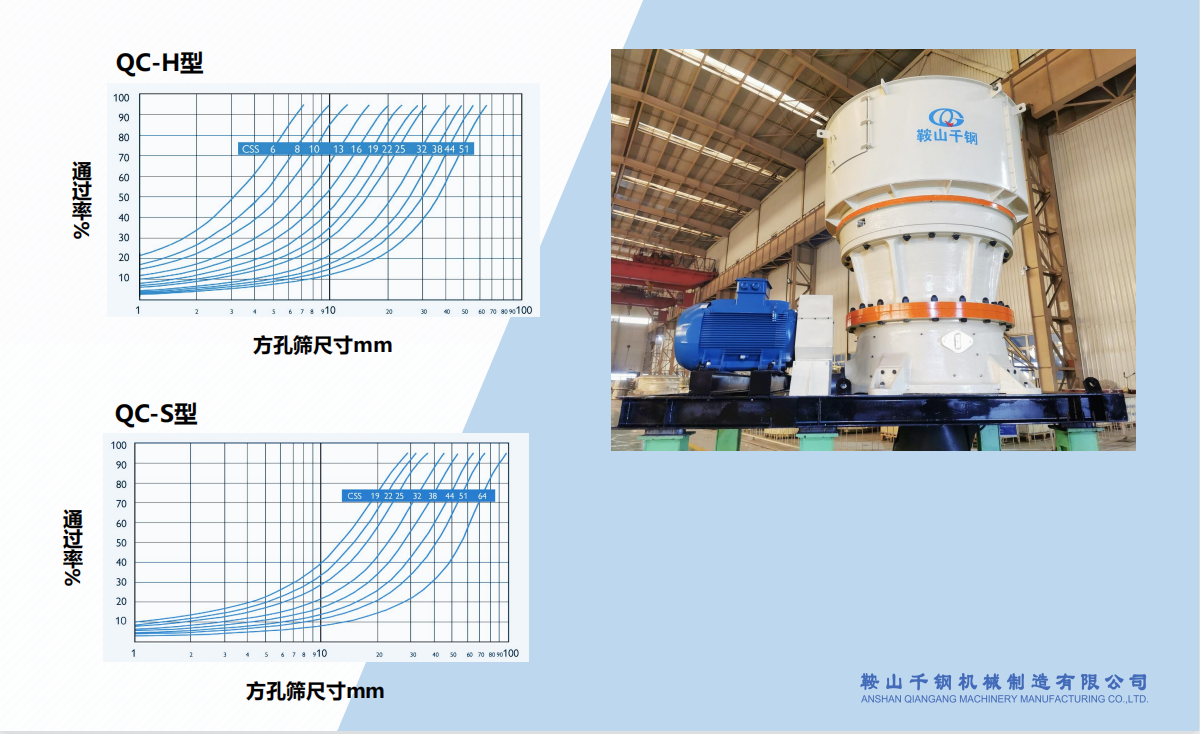

Products grain size curve
According to technical changes and updates, the technical parameters of the equipment are adjusted at any time. You can directly contact us to obtain the latest technical parameters.
